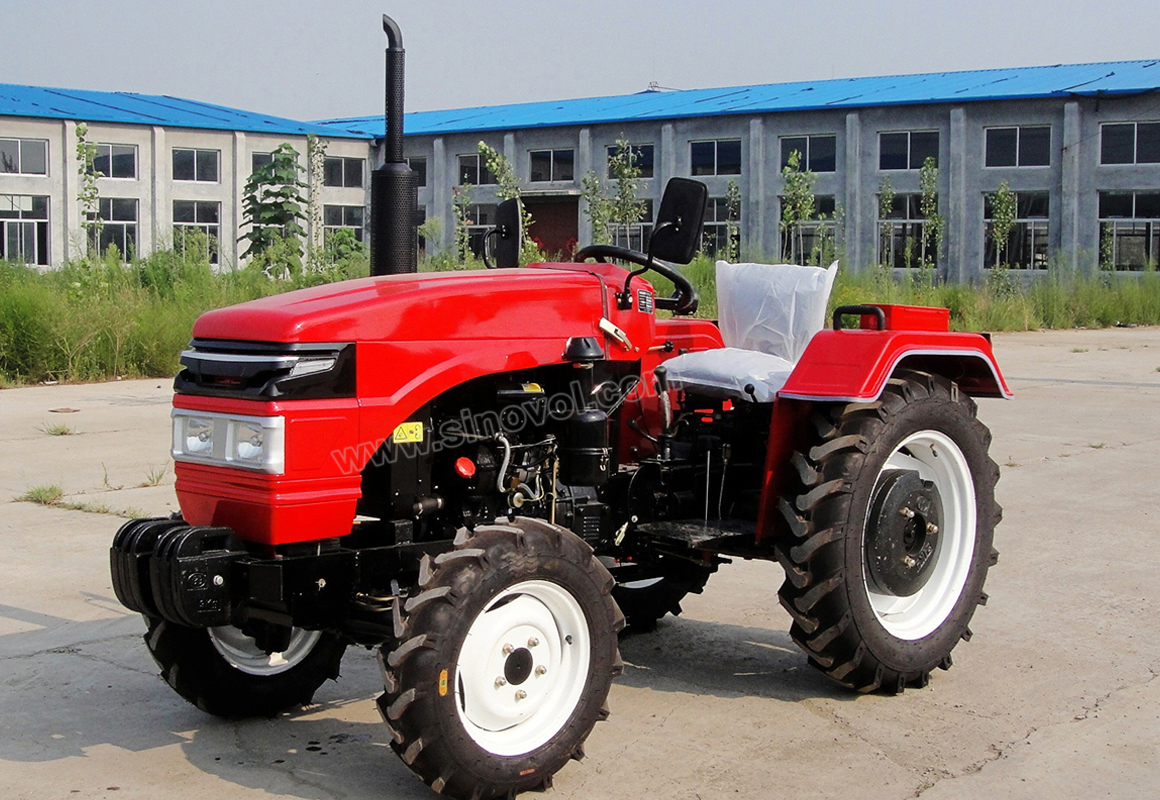

Tractors power is from 25hp to 40hp,with famous brand diesel engine.2WD and 4WD are both ok,you can choose to fit the ROPS,Cabin,rear remote,shuttle shift.It is ok to fit many kinds of implements.
| Technical specification | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model | SN-204 | SN-254A | SN-254B | SN-304A | SN-304B | SN-354 | SN-404 | ||
| Type | 4*4 4WD | ||||||||
| Dimensions of tractor（mm） |
Length | 2800 | |||||||
| Width | 1560 | ||||||||
| Height | 1896 | ||||||||
| Tread | Front Wheel | 1000-1300 | |||||||
| Rear Wheel | 1000-1300 | ||||||||
| WheelBase | 1000-1300 | ||||||||
| Mini Ground Clearance(mm) | 320 | ||||||||
| Net Weight(kg) | 1150 | 1170 | 1170 | 1200 | 1250 | 1300 | 1300 | ||
| Engine | Model | JD295 | JD2100 | LD385 | JD2102 | LD390 | LD4L22 | LD4L23 | |
| Type | Vertical Water Cooled and 4-stroke | ||||||||
| Rated Power (kw) | 2300 | ||||||||
| Rated Speed(r/min) | 2300 | ||||||||
| Fuel | Diesel Oil | ||||||||
| Tire | Front Wheel | 6.00-16 | 6.00-16 | 6.00-16 | 6.00-16 | 6.00-16 | 6.00-16/6.50-16 | 6.00-16/6.50-16 | |
| Rear Wheel | 9.50-24 | 9.50-24 | 9.50-24 | 9.50-24 | 9.50-24 | 9.50-24/11.2-24 | 9.50-24/11.2-24 | ||
| Clutch | Dry-friction，single stage or Dry-friction，Two Stage | ||||||||
| Steering | Mechanical Type or Hydraulic Type | ||||||||
| Transmission Box | 8F+2R or 8F+8R shuttle shift or 16F+4R creeping shift | ||||||||
| Suspension Type | Rear three-point suspension Class I | ||||||||
| PTO Shaft | Type and Rev(r/min) | Non-independent type 720 or Non-independent type 540/720 | |||||||
| Spline | I35 Rectangle Spline With 6 teeth （6×28.91×34.79×8.69） | ||||||||
| Model | SN-200 | SN-250A | SN-250B | SN-300A | SN-300B | SN-350 | SN-400 | ||
| Type | 4*2 2WD | ||||||||
| Dimensions of tractor（mm） |
Length | 2800 | |||||||
| Width | 1560 | ||||||||
| Height | 1896 | ||||||||
| Tread | Front Wheel | 1000-1300 | |||||||
| Rear Wheel | 1000-1300 | ||||||||
| WheelBase | 1660 | ||||||||
| Mini Ground Clearance(mm) | 320 | ||||||||
| Net Weight(kg) | 1150 | 1170 | 1170 | 1200 | 1250 | 1300 | 1300 | ||
| Engine | Model | JD295 | JD2100 | LD385 | JD2102 | LD390 | LD4L22 | LD4L23 | |
| Type | Vertical Water Cooled and 4-stroke | ||||||||
| Rated Power (kw) | 14.72 | 18.4 | 18.4 | 22.06 | 22.1 | 25.8 | 29.4 | ||
| Rated Speed(r/min) | 2300 | ||||||||
| Fuel | Diesel Oil | ||||||||
| Tire | Front Wheel | 4.00-16 | 5.50-16 | ||||||
| Rear Wheel | 8.30-24 | 9.50-24 | 9.50-24/11.2-24 | 9.50-24/11.2-24 | |||||
| Clutch | Dry-friction，single stage or Dry-friction，Two Stage | ||||||||
| Steering | Mechanical Type or Hydraulic Type | ||||||||
| Transmission Box | 8F+2R or 8F+8R shuttle shift or 16F+4R creeping shift | ||||||||
| Suspension Type | Rear three-point suspension Class I | ||||||||
| PTO Shaft | Type and Rev(r/min) | Non-independent type 720 or Non-independent type 540/720 | |||||||
| SplineSize | I35 Rectangle Spline With 6 teeth （6×28.91×34.79×8.69） | ||||||||
| Note: The tractor model with A means tractor with two cylinders diesel engine,with B means tractor with three cylinder diesel engines | |||||||||
