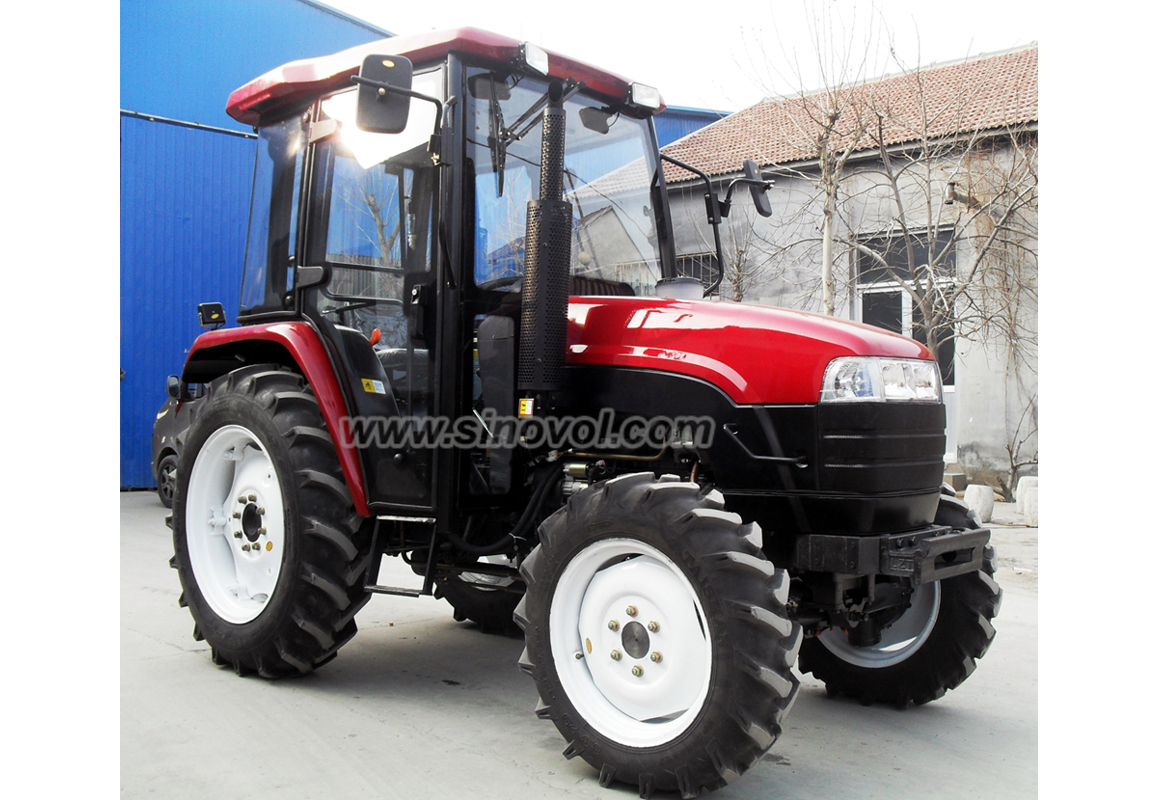

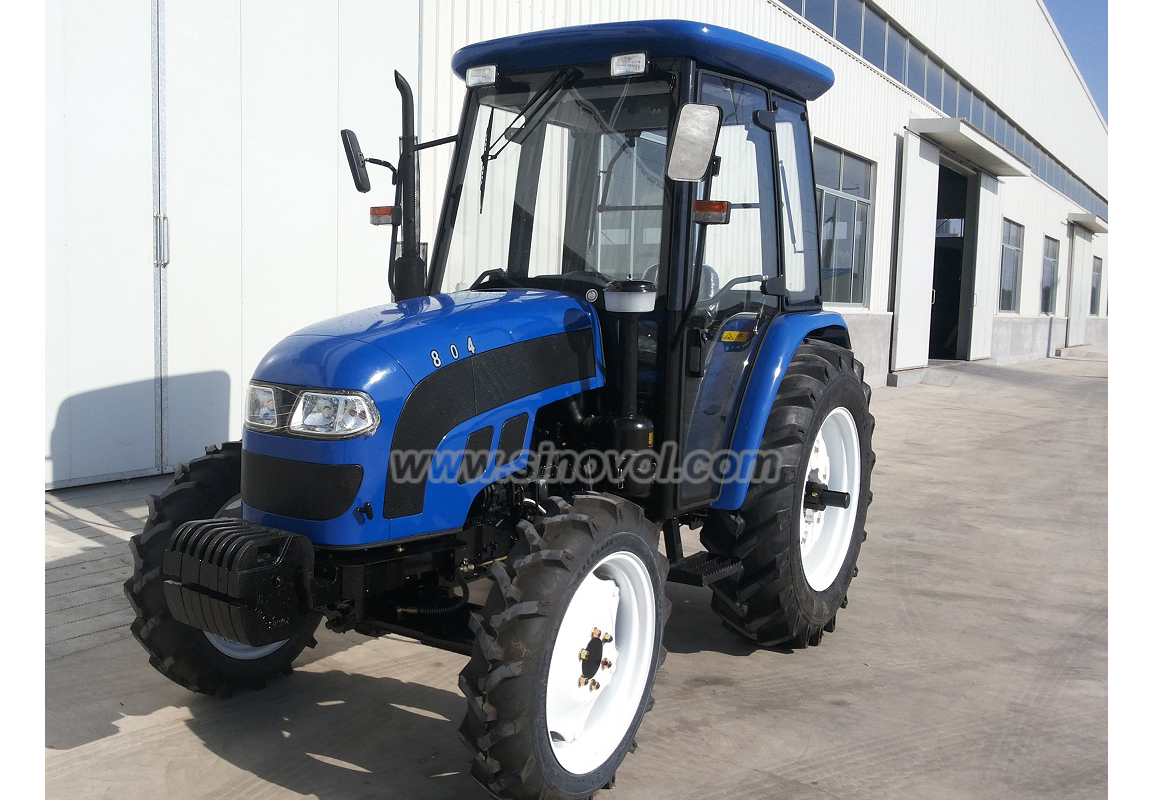

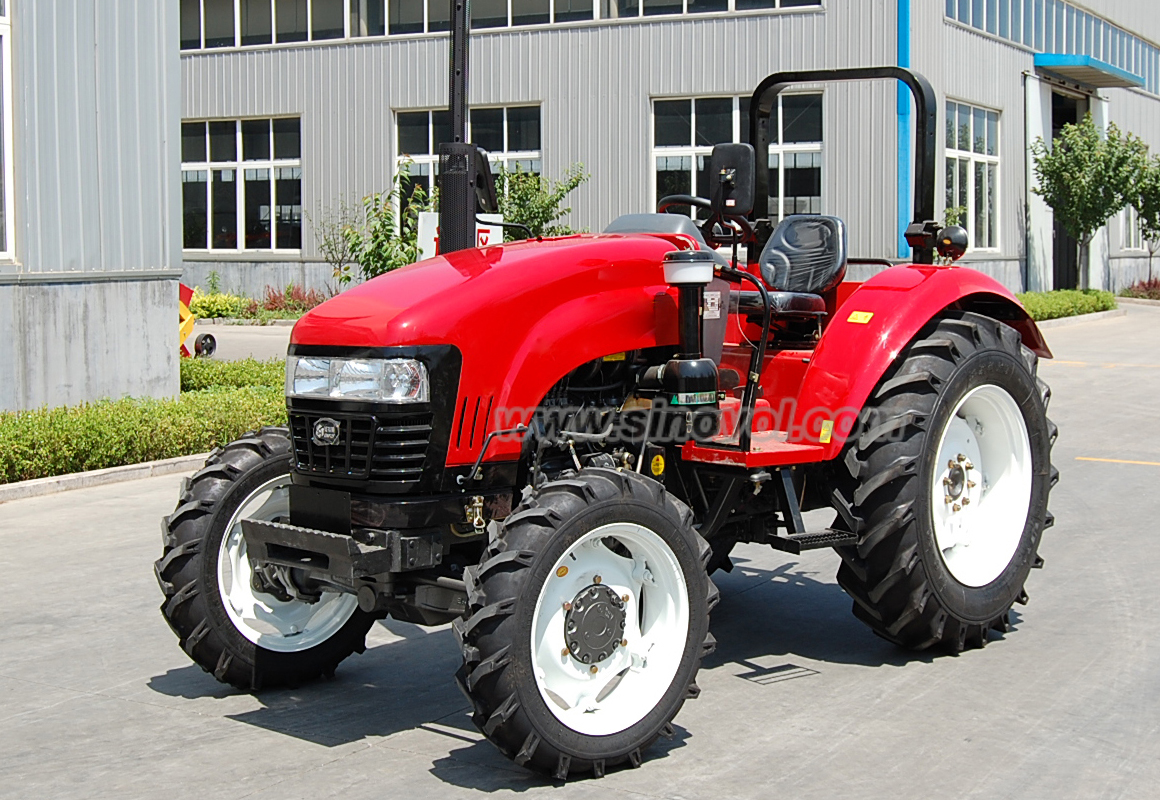

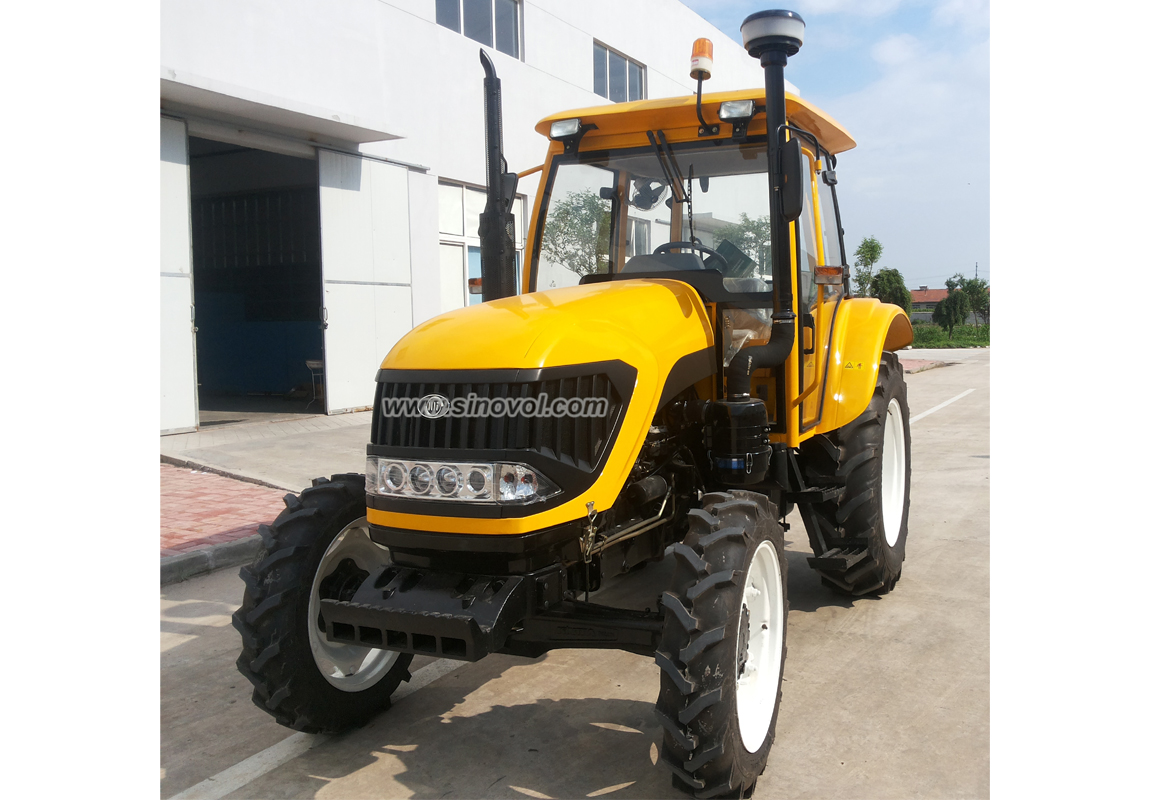

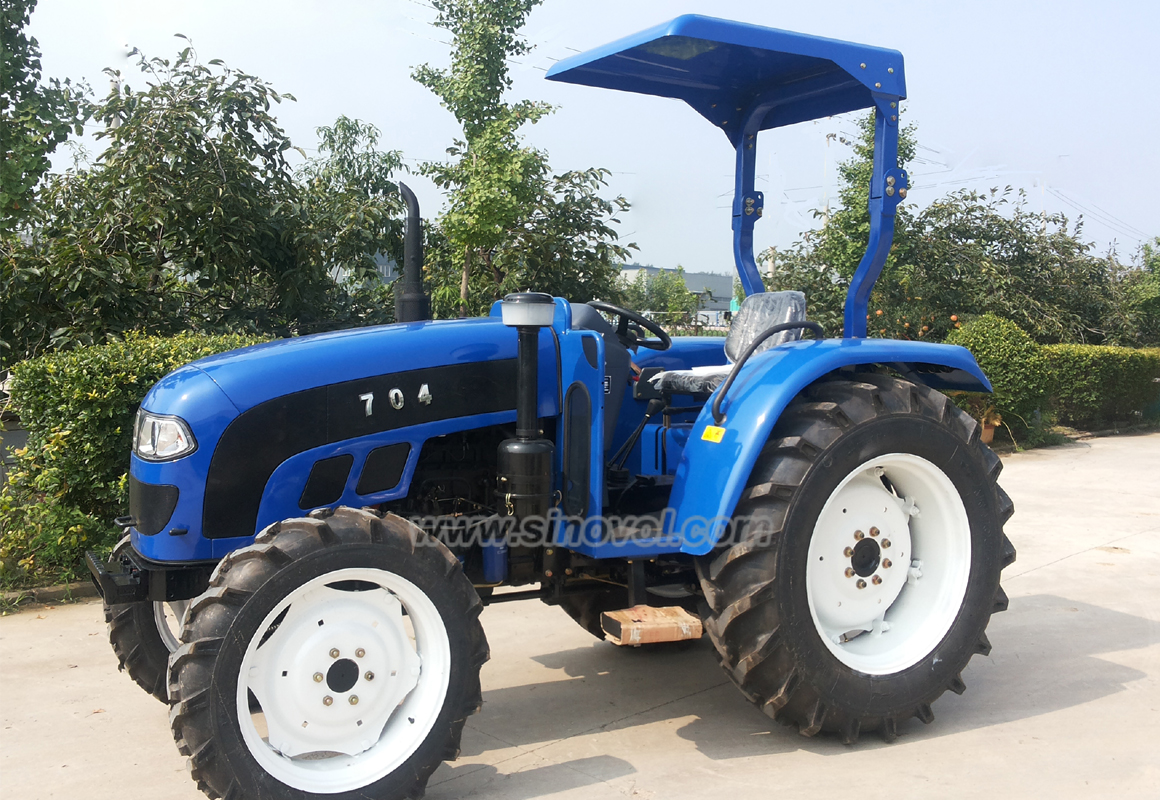

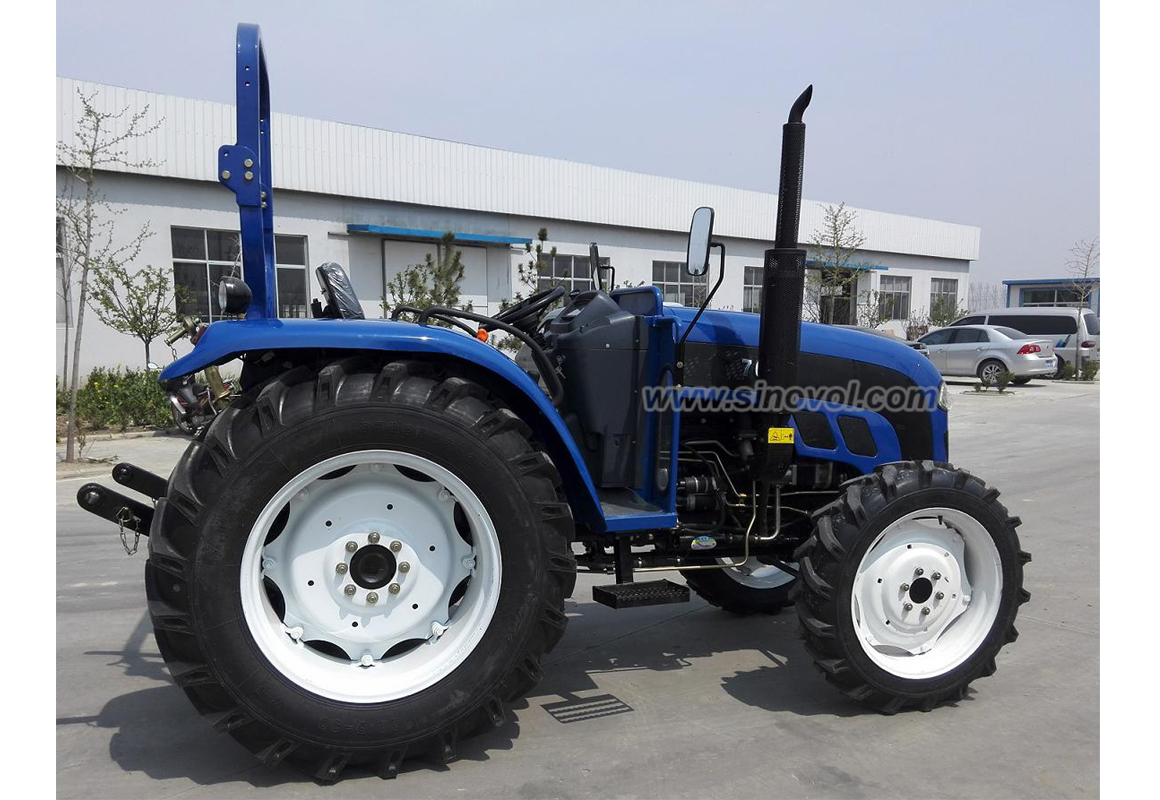

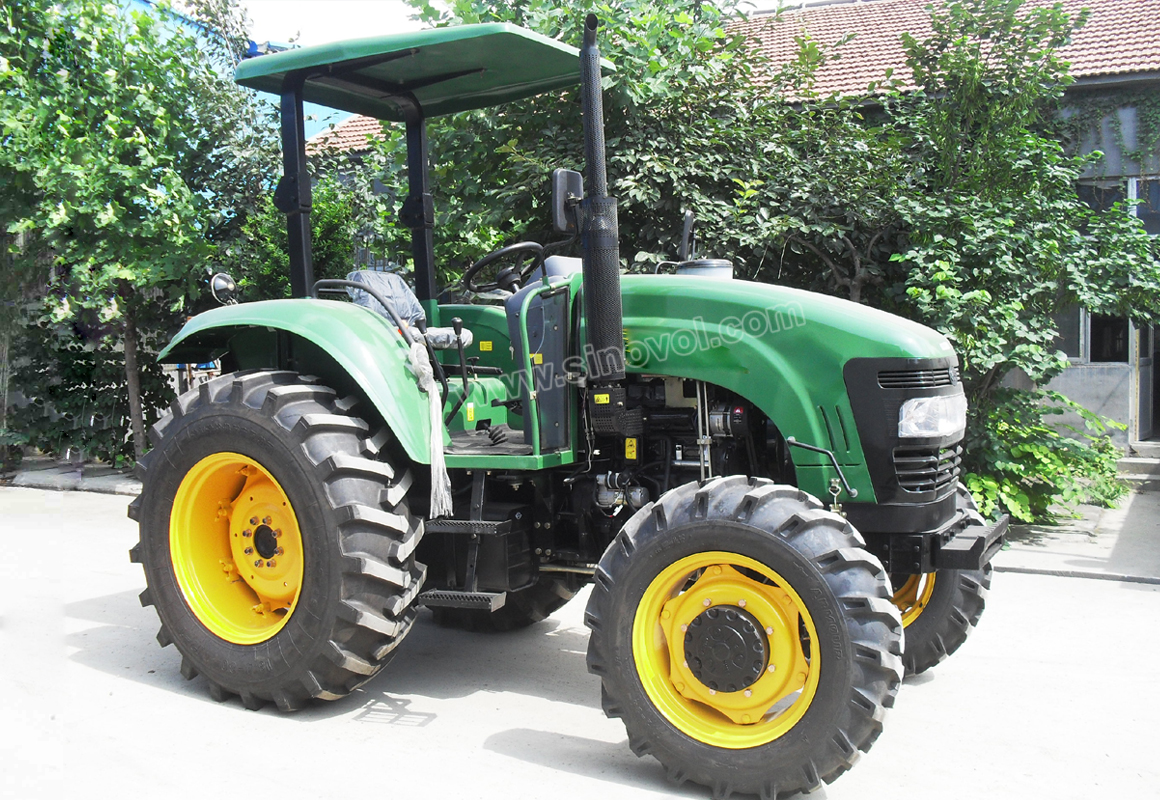

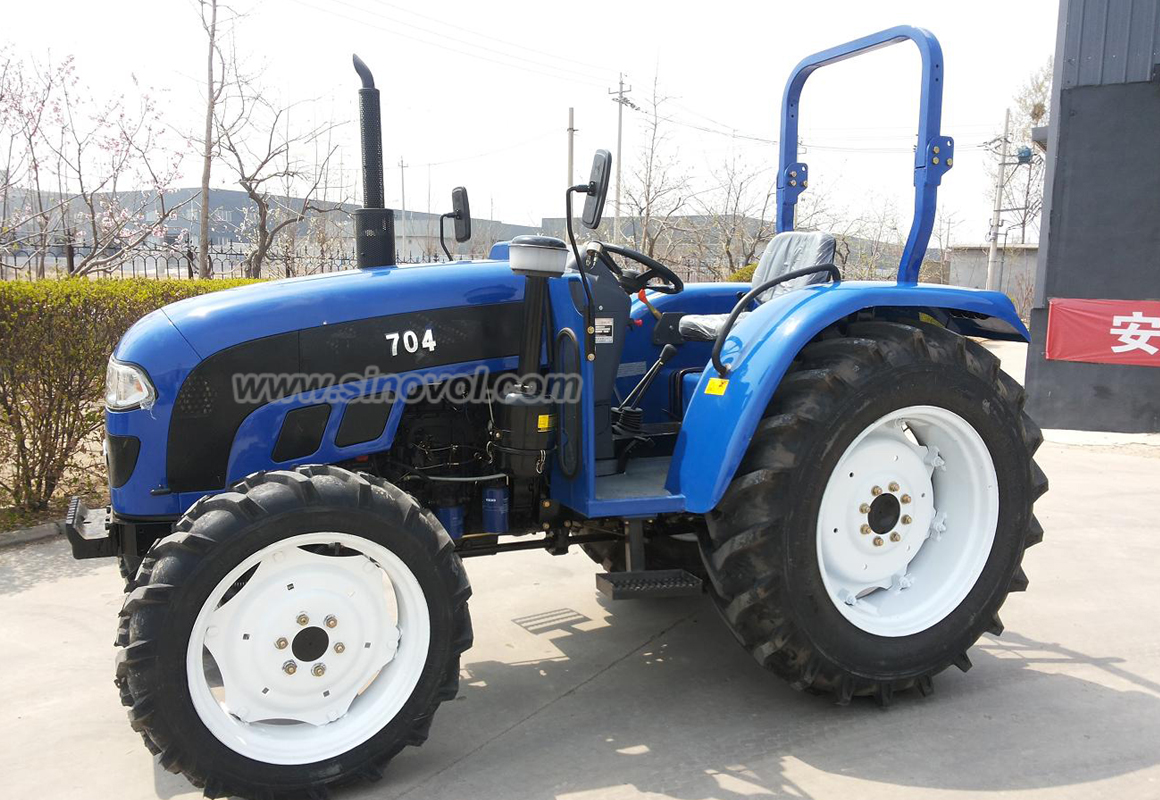

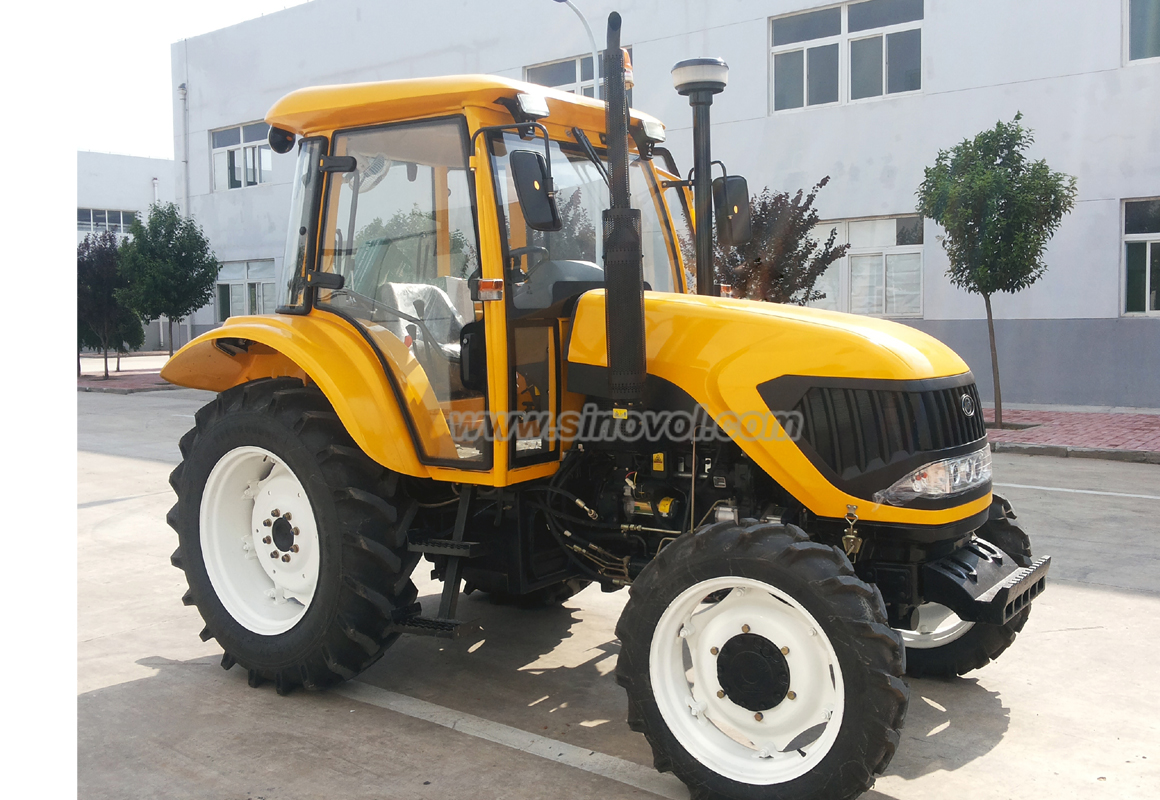

Tractors power is from 70hp to 85hp,2WD and 4WD are both ok.This tractor can choose to fit the ROPS,cabin,rear remote hydraulic,etc.It is with four cylinder diesel engine,can fit many kinds of implements.
| Technical specification | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Tractor Model | SN-704 | SN-754 | SN-804 | SN-854 | SN-700 | SN-750 | SN-800 | SN-850 | ||
| Power | 70hp | 75hp | 80hp | 85hp | 70hp | 75hp | 80hp | 85hp | ||
| Drive Type | 4×4 | 4×2 | ||||||||
| Engine | ||||||||||
| Engine | 4 cylinder engine,four stroke,water cooled | |||||||||
| Capacity of fuel tank(L) | 78 | |||||||||
| Rated speed (r/min) | 2200 | |||||||||
| Engine power (kw) | 51.5 | 55.1 | 55.8 | 62.5 | 51.5 | 55.1 | 58.8 | 62.5 | ||
| Lowest fuel consumption (g/kw·h) | ≤242 | |||||||||
| Transmission | ||||||||||
| Category of 3-point link | Rear, Category II | |||||||||
| Lifting capacity(at point of 610mm)KN | 12.5 | 13 | 13.5 | 14 | 12.5 | 13 | 13.5 | 14 | ||
| Technical parameter | ||||||||||
| Dimension LxWxH mm | 4010x1929x2568 | |||||||||
| Wheel base(mm) | 2188 | 2236 | ||||||||
| Track base(mm) front wheel | 1500 | 1450 | ||||||||
| Track base(mm) rear wheel | 1530 | |||||||||
| The smallest clearance(mm) | 430 | 340 | ||||||||
| Front tyre | 8.3-24 | 6.50-20 | ||||||||
| Rear tyre | 14.9-30 | |||||||||
