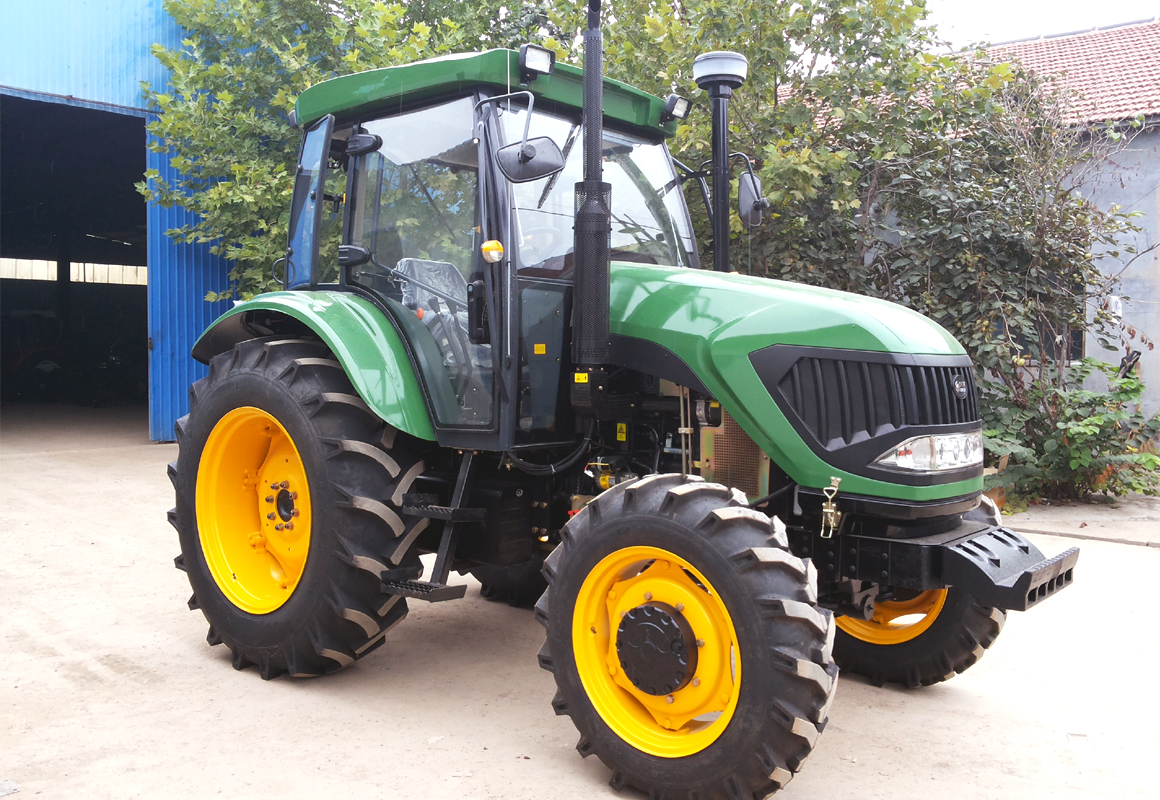

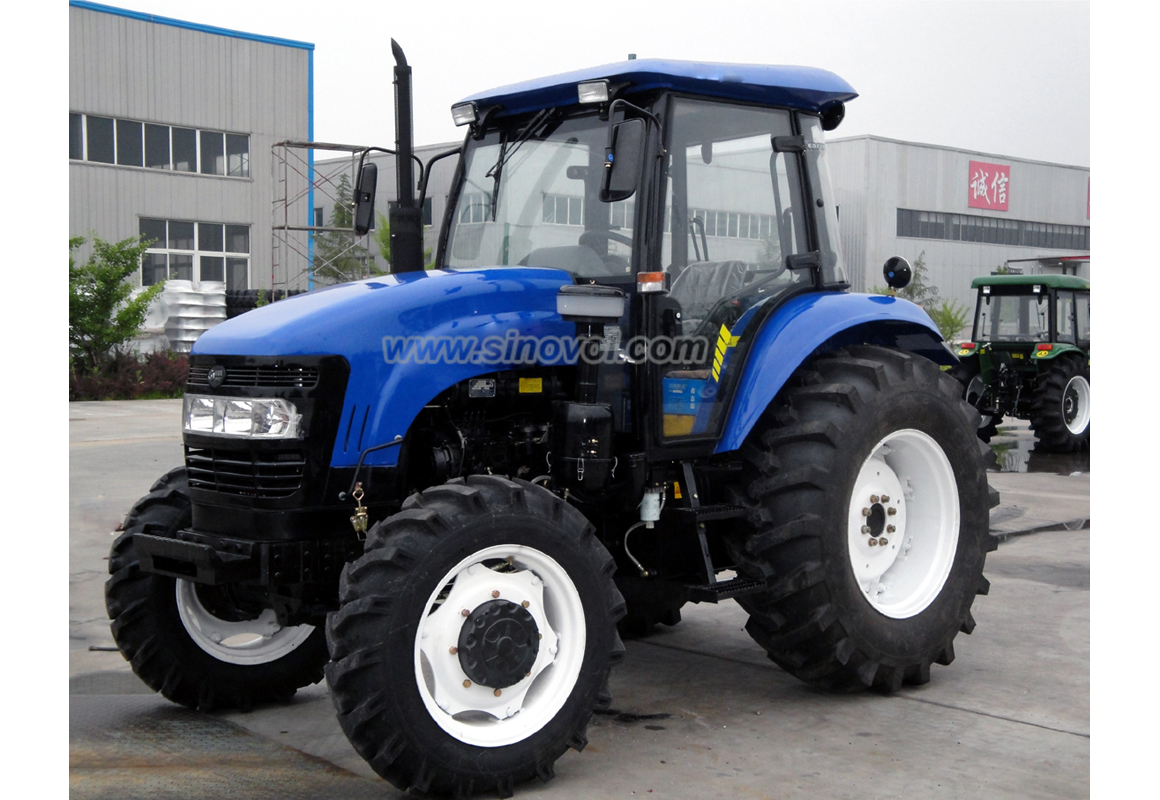

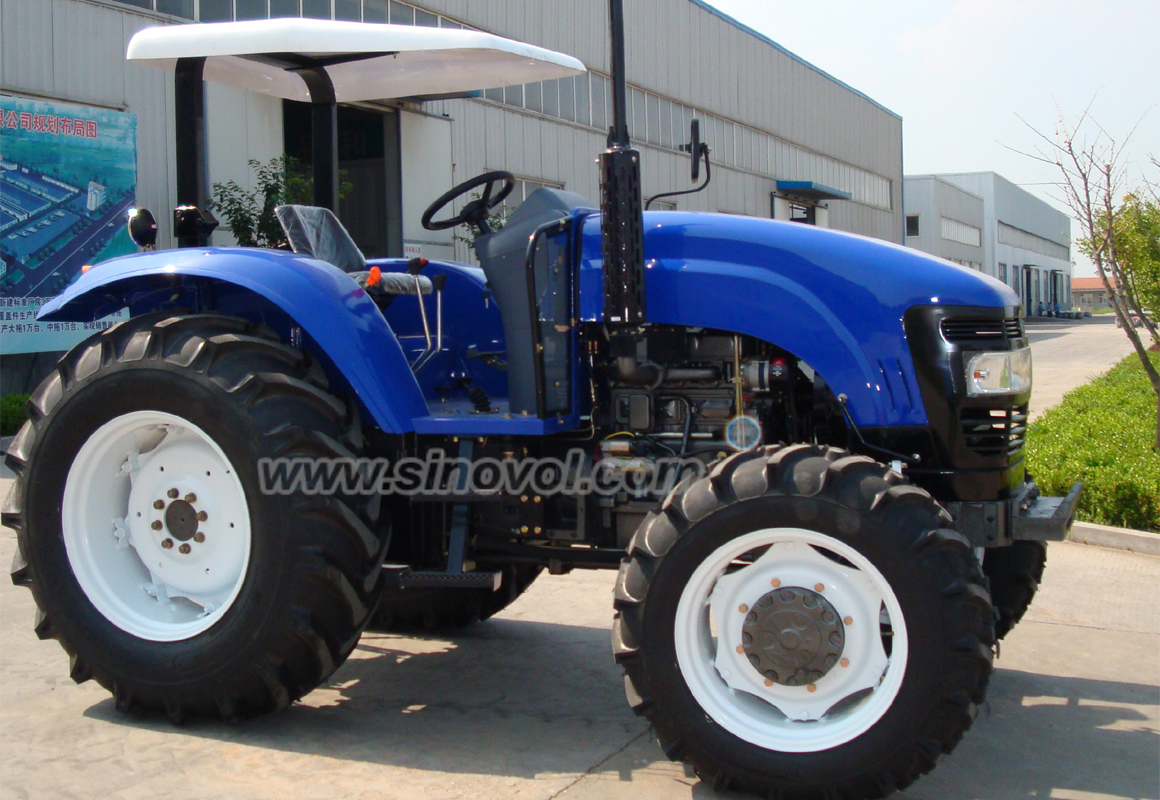

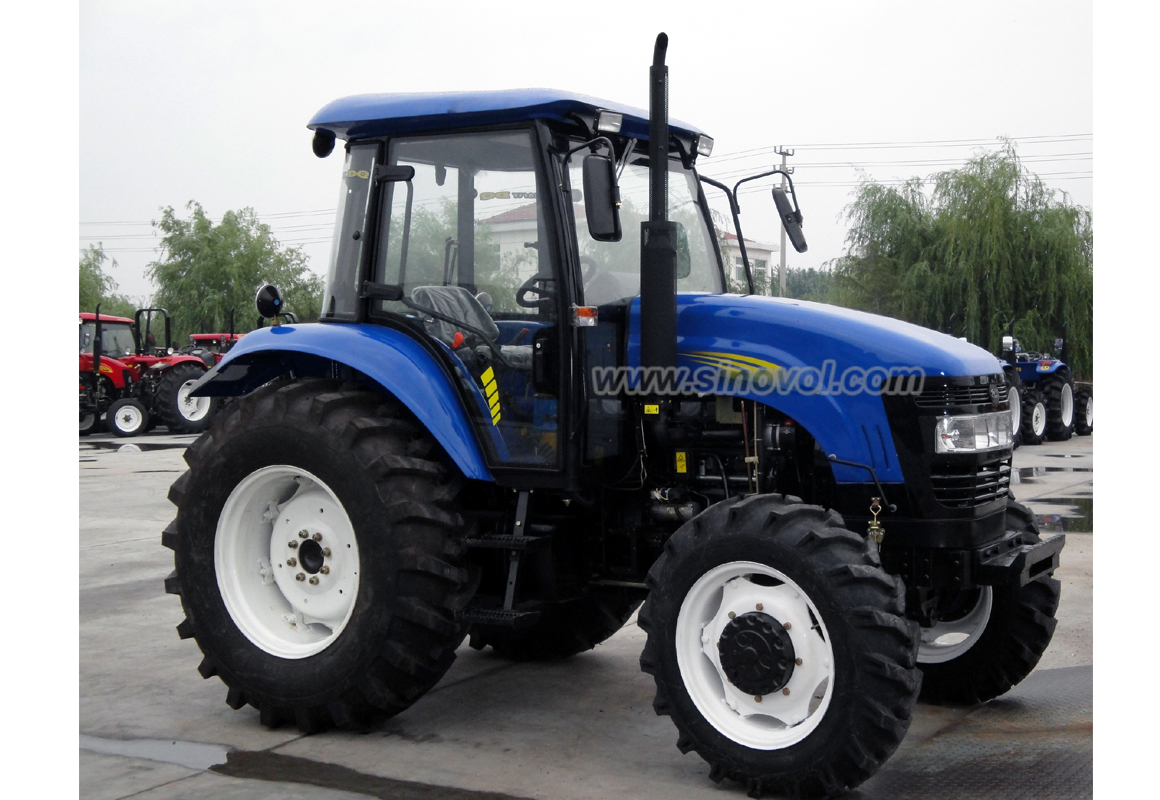

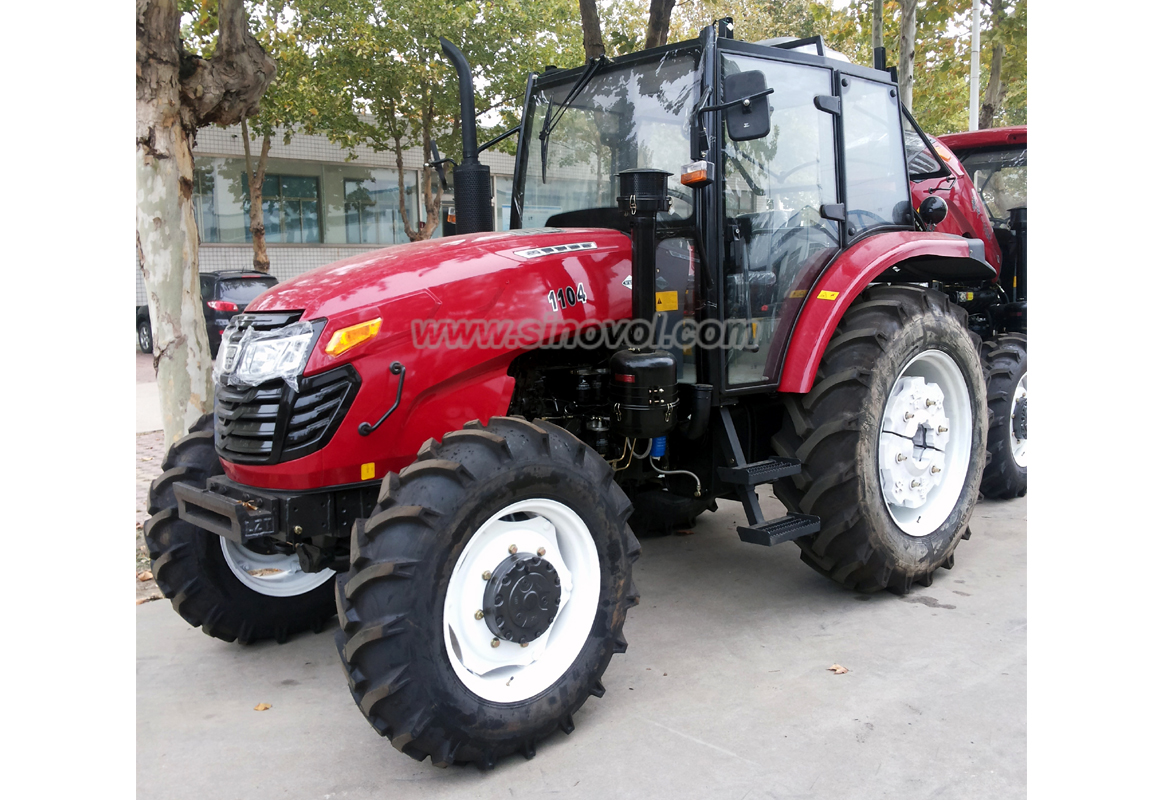

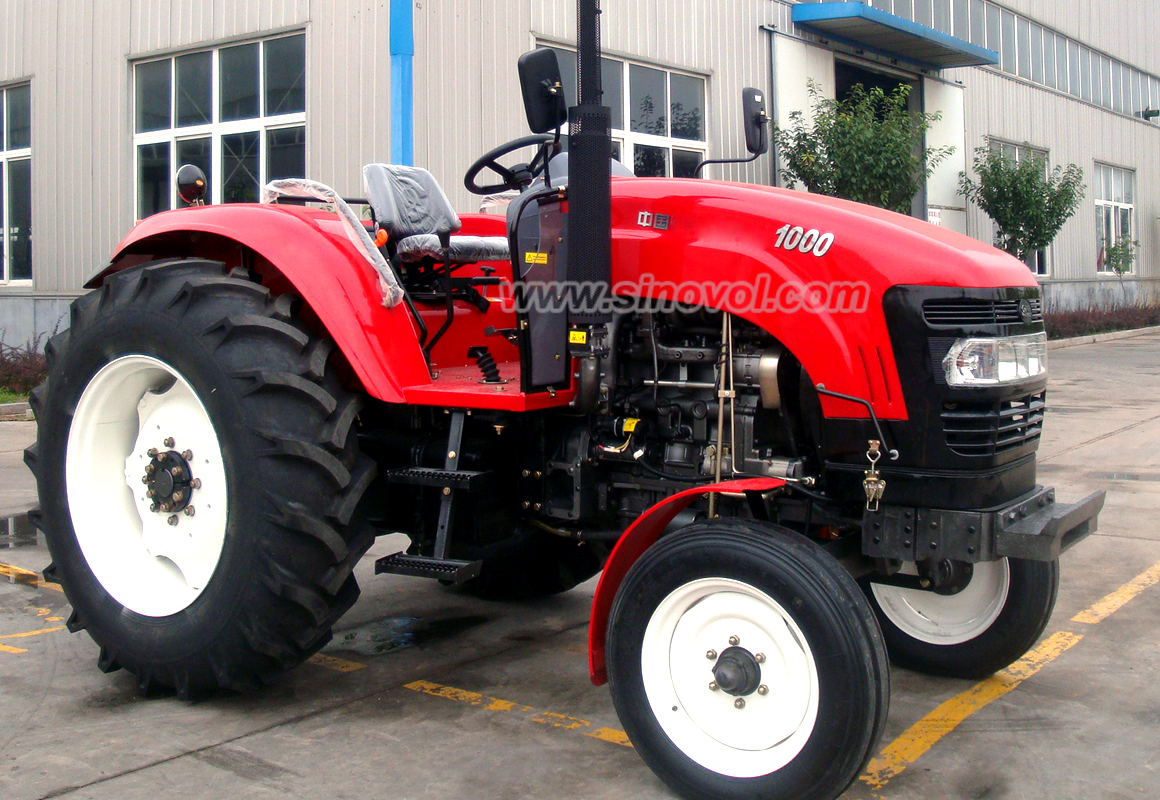

Tractors power is from 90hp to 110hp,2WD and 4WD are both ok.This tractor can choose to fit the ROPS,cabin,rear remote hydraulic,etc.It is with four cylinder diesel engine,can fit many kinds of implements.
| Technical specification | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|

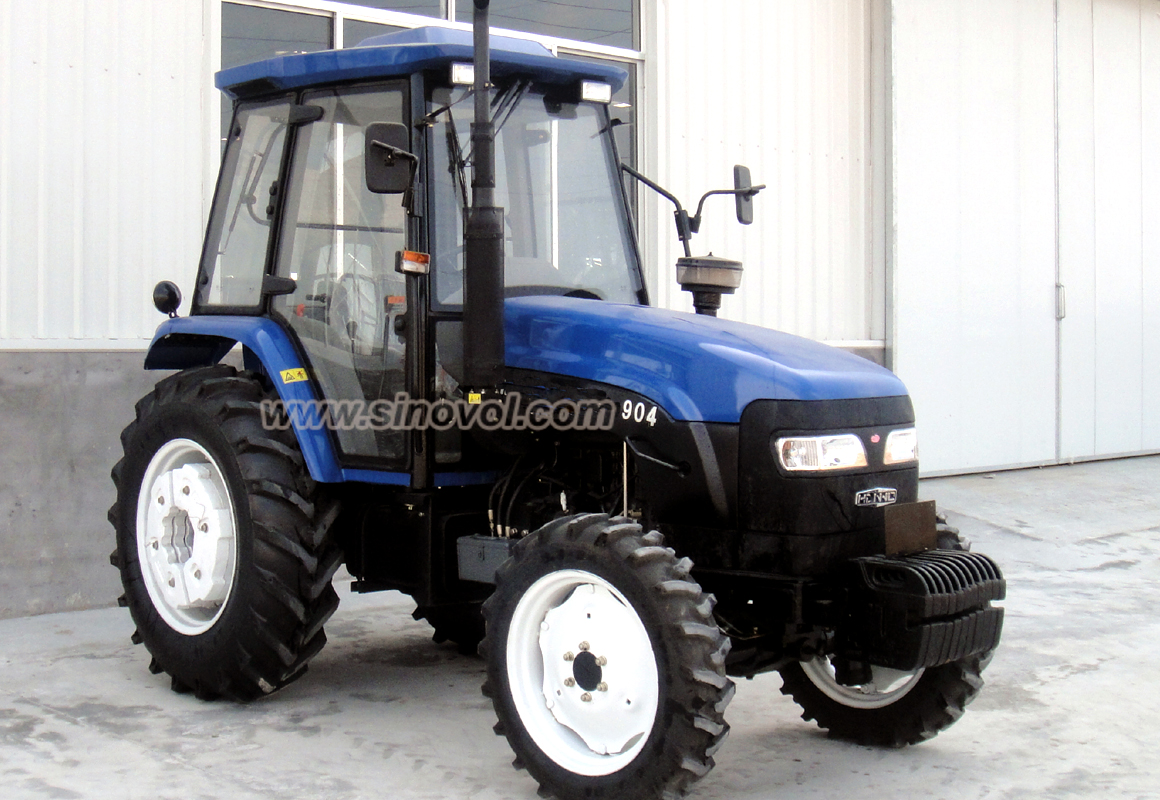

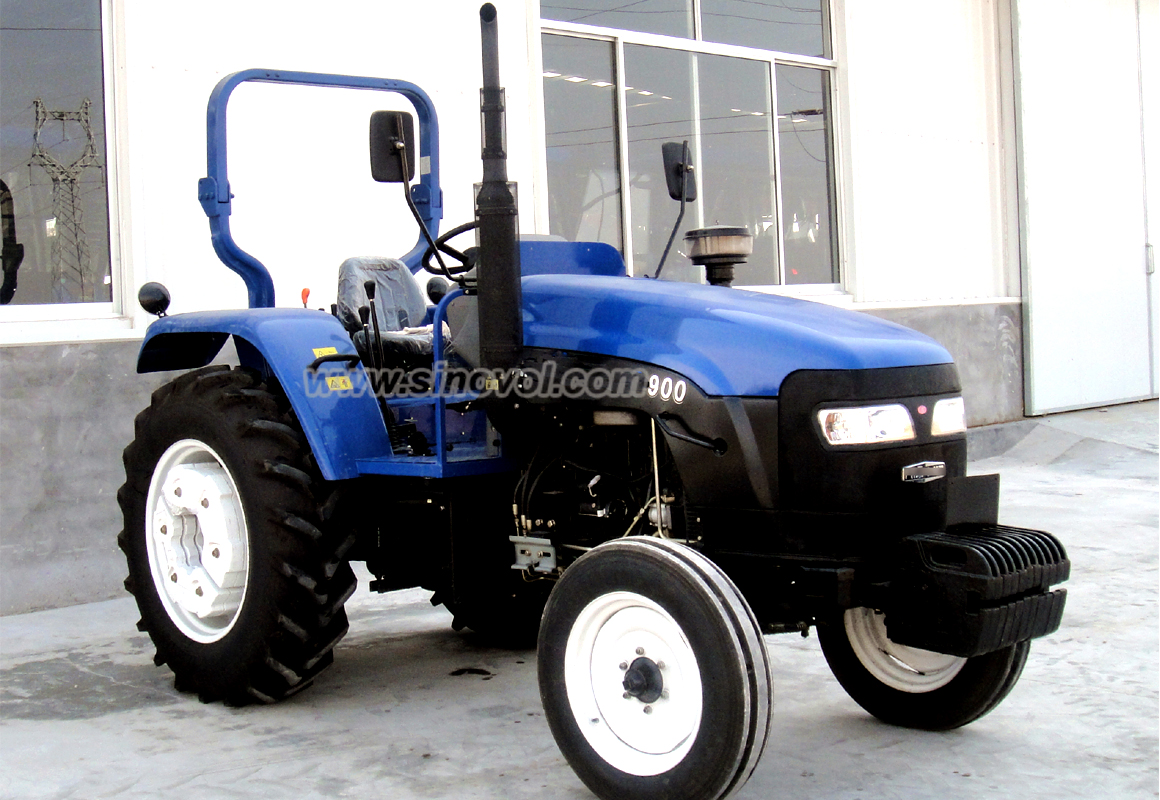

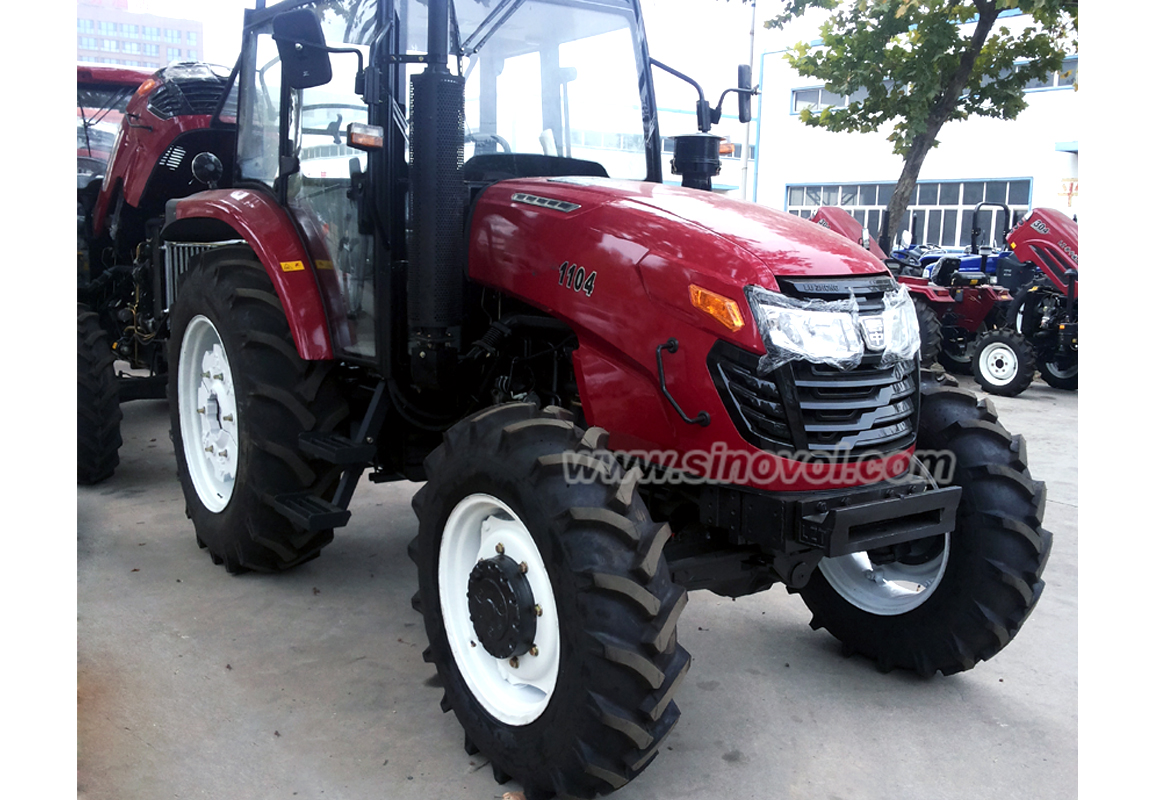

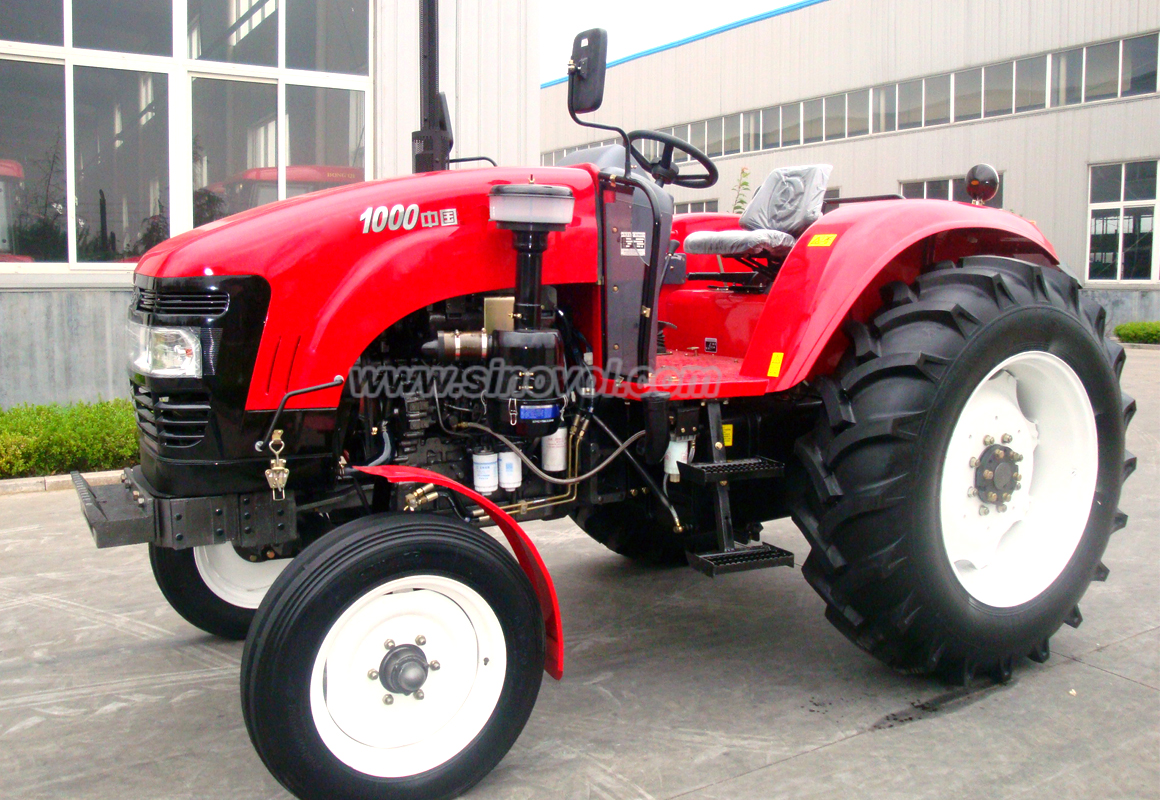

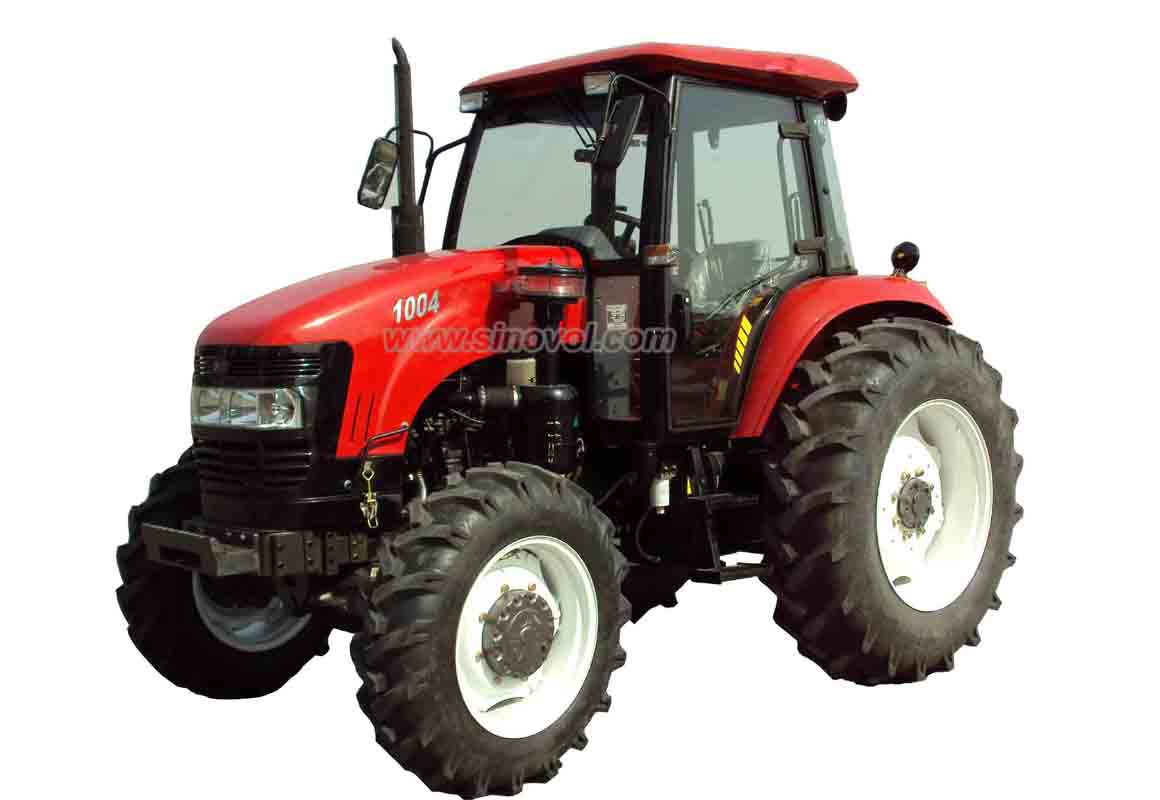

| Tractor Model | SN-904 | SN-954 | SN-1004 | SN-1104 | SN-900 | SN-950 | SN-1000 | SN-1100 | ||
| Power | 90hp | 95hp | 100hp | 110hp | 90hp | 95hp | 100hp | 110hp | ||
| Drive Type | 4×4 4WD | 4×2 2WD | ||||||||
| Engine | ||||||||||
| Engine Model | 4MC-T65A | LRC4108ZT | 4108 | 4108 | 4MC-T65A | LRC4108ZT | 4108 | 4108 | ||
| Capacity of fuel tank(L) | 150 | |||||||||
| Rated speed (r/min) | 2300 | |||||||||
| Engine power (kw) | 66.2 | 69.8 | 73.5 | 80.9 | 66.2 | 69.8 | 73.5 | 80.9 | ||
| Lowest fuel consumption (g/kw·h) | ≤242 | |||||||||
| Transmission | ||||||||||
| Clutch | Dry,dual-stage type | |||||||||
| PTO Speed(mm) | 540/1000 or 760/1000（optional） | |||||||||
| Gearshift | 8F+4R/16F+8R(optional)/8F+8R(optional) | |||||||||
| Three point linkage | ||||||||||
| Category of 3-point link | Rear,CategoryII | |||||||||
| Lifting capacity(at point of 610mm)KN | ＞16 | |||||||||
| Technical parameter | ||||||||||
| Dimension LxWxH mm | 4593x2050x2810 | |||||||||
| Wheel base(mm) | 2195 | 2362 | ||||||||
| Track base(mm) front wheel | 1610 | 1485 | ||||||||
| Track base(mm) rear wheel | 1620-2020(usual 1620) | |||||||||
| The smallest clearance(mm) | 379 | 476 | ||||||||
| Front tyre | 11.2-24 | 6.5-20 / 7.5-16(optional) | ||||||||
| Rear tyre | 16.9-34/18.4-30(optional) | |||||||||
