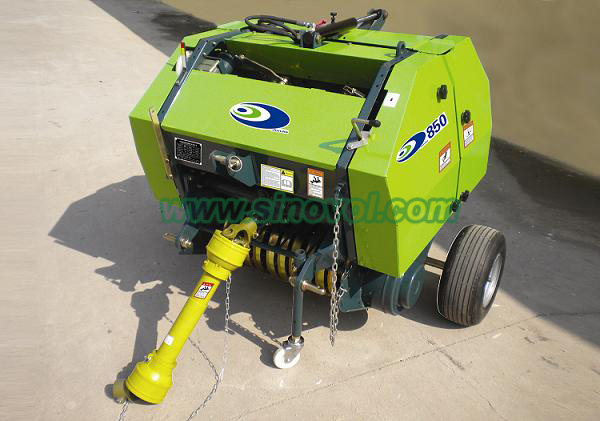

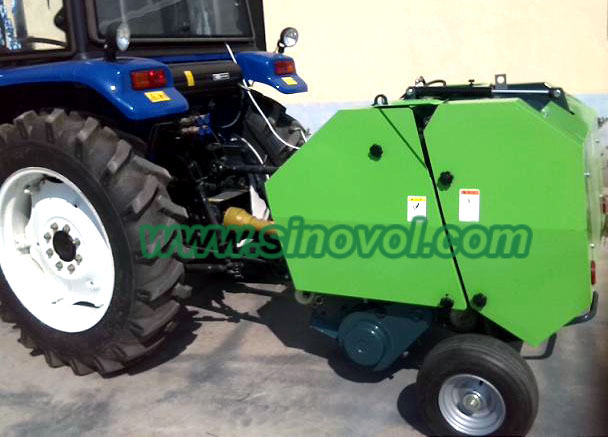

1.To pick up,baling and putting the bundle work automatically
2.Widely used in dry and green grass,rice,wheat and rub corn stalks collection.The bundles are easy for transport,storage and deep processing
3.The bale is tight inside and loosening outside and good ventilation it is easy to storage
| Model | RB-0850 | RB-0870 | RB-0910 |
|---|---|---|---|
| Bale size(dia x width) | 50x70cm | 61x70cm | 85X90cm |
| Size(LxWxH) | 1150x1300x1200mm | 1300x1300x1350mm | 2450x1850x1600mm |
| Weight | 390kg | 440kg | 930kg |
| Pick up width | 80cm | 80cm | 90cm |
| Efficiency | 2-5km/h | 2-5km/h | 5-8km/h |
| Tyre | 16x6.50-8-4RP | ||
| Matched power | 25-50hp | 30-80hp | 30-50hp |
| PTO speed | 540rpm | ||
| Model | SB-2060 |
|---|---|
| Section dimensions | 32x42cm |
| bale length | 30-100cm adjustable |
| weight | 1030kg |
| pick up width | 144cm |
| No of spring tooth | 32 |
| Line of spring tooth | 4 |
| plunger stroke | 60cm |
| plunder spped | 92/min |
| work speed | 4-8km/h |
| work efficiency | 180-240 bundle/hour |
| tyre | ST205/75 D15 8PR |
| Matched power | 25-80hp |
